With the function of automatic walking, it can complete all actions such as lifting, forward and backward, and steering in the air. It is suitable for single-person operation, mainly used for high-altitude operations in electric power, communication, airports, exhibition centers, hotels, supermarkets, factories, stations, docks, subway stations and other places.
● Small size is convenient for working in narrow spaces;
● The use of large-capacity traction batteries greatly improves the working time;
● Circuit fault code display is convenient for maintenance.

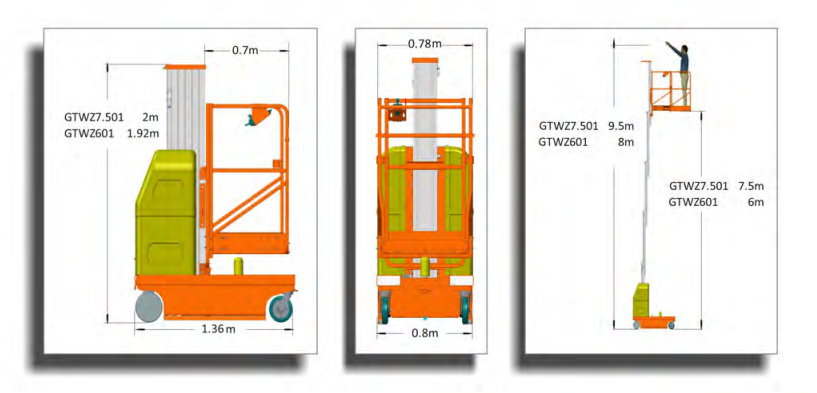

| Модель | GTWZ7.501 | GTWZ601 |
| Platform height(mm) | 7500 | 6000 |
| Working height(mm) | 9500 | 8000 |
| Грузоподъемность (кг) | 125 | 150 |
| Extended platform load(kg) | 90 | 90 |
| Overall size(H×W×L) | 2000×800×1360 | 1920×800×1360 |
| Размер платформы (мм) | 780×700 | 780×700 |
| Platform extension размер (мм) | 560 | 560 |
| Batteries(V/Ah) | 2-12/120 | 2-12/120 |
| Integrated charger(V/A) | 24/15 | 24/15 |
| Drive motors(V/KW) | 2-24/0.5 | 2-24/0.5 |
| Lifting motor(V/KW) | DC 24/1.5 | DC 24/1.5 |
| Up/Down speed(mm/s) | 48/40 | 43/35 |
| Maximum Drive Speeds-Stowed(Km/h) | 4 | 4 |
| Maximum Drive Speeds-Raised(Km/h) | 1.1 | 1.1 |
| Самостоятельный вес (кг) | 880 | 850 |
